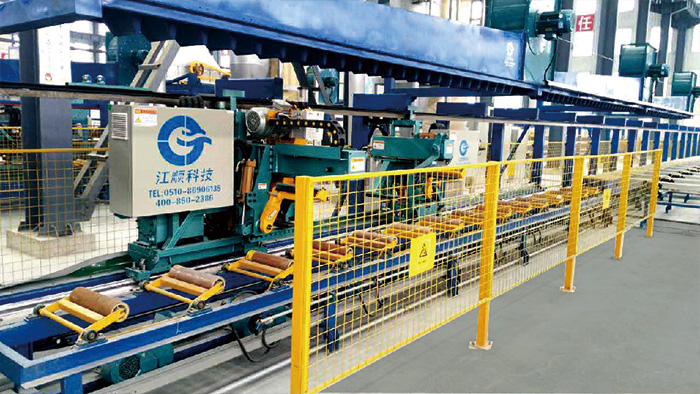

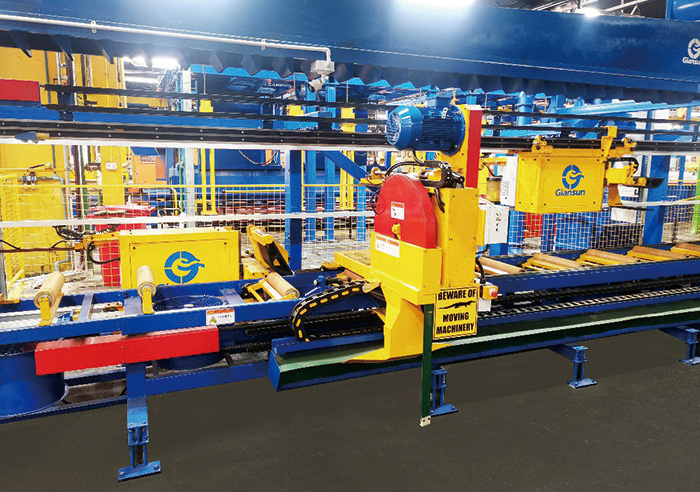

Puller The “vertical double rail” double puller is suitable for use in extrusion line of 3600T and below.The “horizontal double tail” double puller type is suitable for use in extrusion line of above 3600T.

Able to work with the continuous operation of the extrusion press without increasing the dead cycle period or pausing the press for sawing.The extrusion efficiency and finished product rate will be greatly improved.

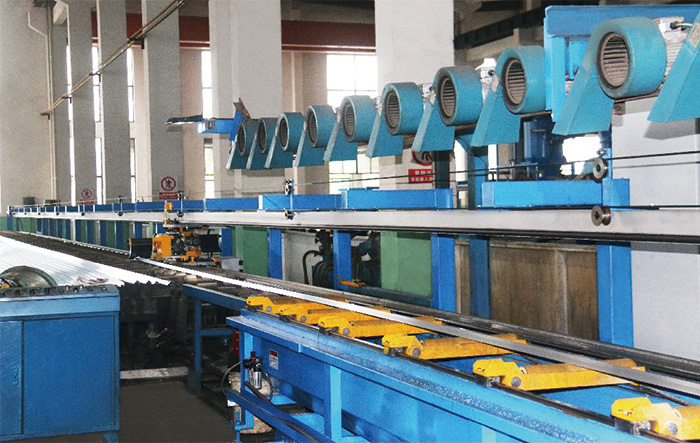

Main features of vertical double rail puller

Using elastic clamp,compact structure,high finished product rate,suitable for operation that requires puling force of 60Kg-400Kg.

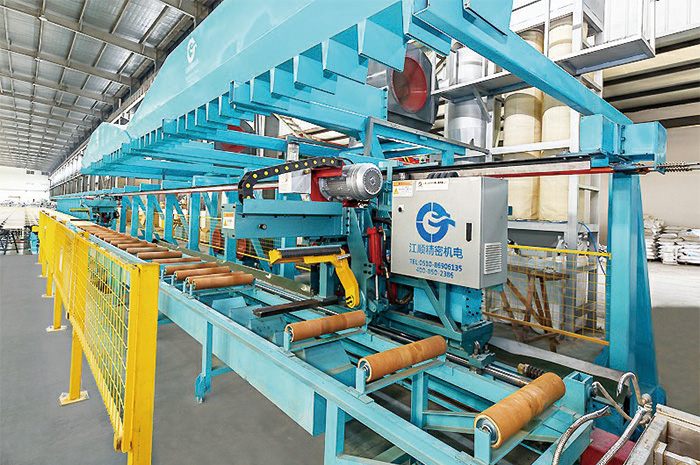

Main characteristics of horizontal double rail puller

Large bearing capacity,suitable for large extrusion machine;using knife shaped pressure clamp,traction clamp in self locking state during pulling;suitable for 400Kg-1500Kg traction force.
Advantages of double puller:Automatic cutting,tract extrusion profiles,and the place the profiles to handing system accurately,greatly reducing the labor intensity of production,improve rate of finished products,and improve the automation of extrusion.

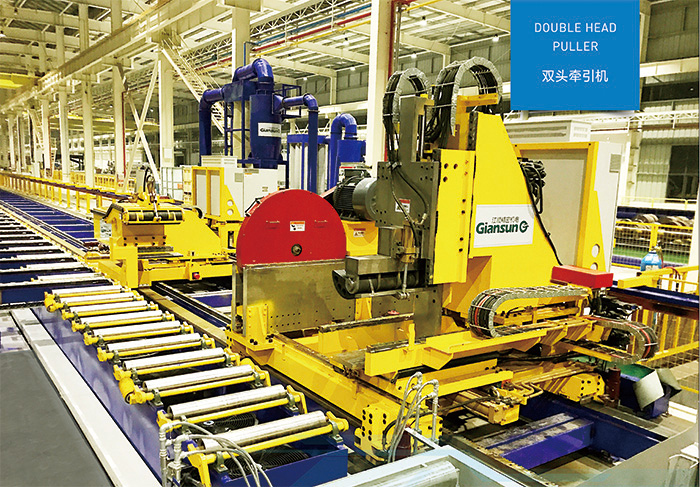

The main features of the double rail three head puller

The flying saw and the traction head operate independently and the flying saw walk on the third rail;The two traction heads are walking on the two different guide rails,and are circulate for traction to adapt to the special rapid extrusion.In the case of multi cut from one billet,this structure is the most suitable; The two traction head do not need to be handed over material thus no scrap is formed.
